Name: 4 Rows of Steel Tooth Hob
Brand: Milalion Tools Co., Ltd.
SKU: CMLL3
Availability: InStock

Home > products > Construction Cutter >

4 Rows of Steel Tooth Hob

Place of Origin:

Hubei , China

Brand Name:

MILALION

Certification:

ISO9001、14001、45001， AP1-7-1

Model Number:

CMLL3

Request A Quote

Product Details

Diameter:

12 1/4 Inch&12 1/2inch

Steel Tooth Rows:

Taper:

Suitable Rock Hardness:

F≤8

Recommended Single Cutter Drilling Pressure:

50-80KN

Max Withstand Drilling Pressure:

91KN

Recommended Cutter Head Rotating Speed:

3 〜15RPM

Max Line Velocity:

90m/min

Payment & Shipping Terms

Price

negotiate

Packaging Details

Plywood box

Payment Terms

T/T

Supply Ability

3000pcs per month

RELATED PRODUCTS

86- 713- 8341999

info@milaliontools.com

86- 713- 8341768

Contact Now

Product Description

There are two models of this product

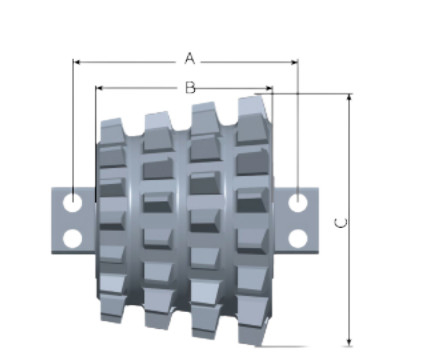

No.	Model	Diameter	A	B	C	Tooth Rows	Taper
1	CMLL3	121/4"	340	224	310	4	20
2	CMLL3	121/2"	340	224	320	4	20

Model Description

• C:Construction roller cutter

• 4: 4 steel tooth rows

•MLL: MLLMILALION

Features

The steel tooth cutters are used in soft to medium formations such as siltstone, chalk and shales. The steel tooth cutters have hardfaced cutting structures that enable them to be paired as required.

No.	Used Parameters	12 1/4"	12 1/2"
1	Suitable Rock Hardness	f≤8	f≤8
2	Recommended single cutter drilling pressure	50-80KN	50-80KN
3	Max withstand drilling pressure	91KN	91KN
4	Recommended cutter head rotating speed	3 〜15RPM	3 〜15RPM
5	Max line velocity	90m/min	90m/min

4 Rows of Steel Tooth Hob 0
