Name: 4 Rows Of Insert Tooth Hob
Brand: Milalion Tools Co., Ltd.
SKU: CMLL4I
Availability: InStock

Home > products > Raise Boring Cutter >

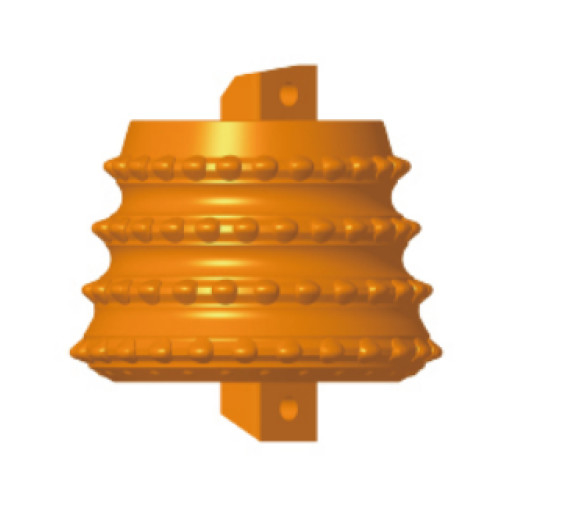

4 Rows Of Insert Tooth Hob

Place of Origin:

Hubei , China

Brand Name:

MILALION

Certification:

ISO9001、14001、45001， AP1-7-1

Model Number:

CMLL4I

Request A Quote

Product Details

Application:

Raise Boring

Suitable Rock Hardness:

Platts Hardness 11≤f≤14

Recommended Single Cutter Drilling Pressure:

100KN~180KN

Recommended Cutter Head Rotating Speed:

3~15RPM

Max Line Speed:

90m/min

Payment & Shipping Terms

Price

negotiate

Packaging Details

Plywood box

Payment Terms

T/T

Supply Ability

3000pcs per month

6 Rows Of Insert Tooth Hob

Get Best Price

8 Rows Of Insert Tooth Hob

Get Best Price

5 Rows Of Insert Tooth Hob

Get Best Price

4 Rows Of Insert Tooth Hob

Get Best Price

86- 713- 8341999

info@milaliontools.com

86- 713- 8341768

Contact Now

Product Description

There are two models of this product

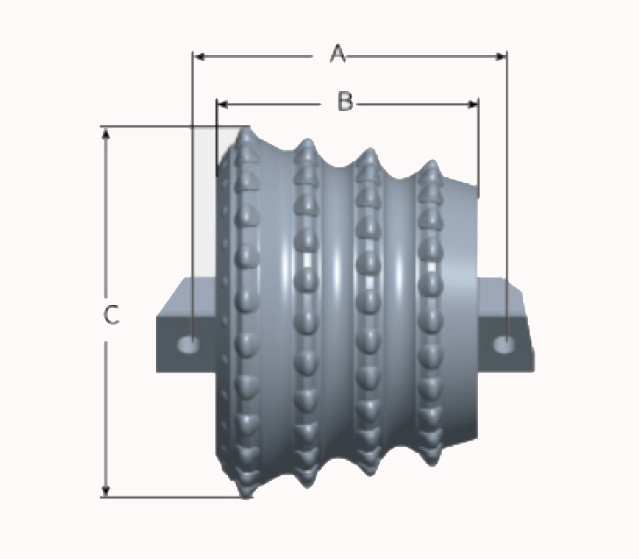

No.	Model	Diameter	A	B	C	Tooth Row	Taper
1	CMLL4I	121/4"	312	217	310	4	20
2	CMLL4I	12 1/2"	312	217	320	4	20
3	CMLL4I	143/5"	308.55	222.25	369.8	4	28

Model Description

• C:Construction roller cutter

• 4: 4 steel tooth rows

•MLL: MLLMILALION

Features

High quality metal sealing .Using high quality tungsten carbide teeth,special bearing structure, so as to achieve the full coverage of crushingCan be Repairable and customized

No.	Used Parameters	121/4"	121/2"	143/5"
1	Suitable Rock Hardness	Platts Hardness	Platts Hardness	Platts Hardness
2	Recommended single cutter drilling pressure	100KN-180KN	100KN-180KN	100KN-200KN
3	Max withstand drilling pressure	198KN	198KN	250KN
4	Recommended cutter head rotating speed	3~15 RPM	3~15 RPM	3~15 RPM
5	Max line velocity	90m/min	90m/min	90m/min

4 Rows Of Insert Tooth Hob 0
