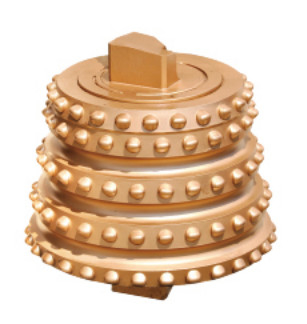

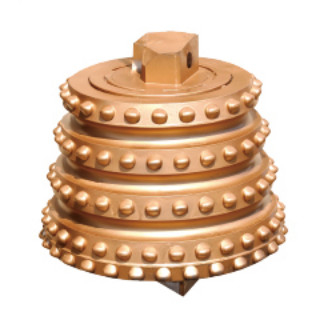

Name: 5 Rows Of Insert Tooth Hob
Brand: Milalion Tools Co., Ltd.
SKU: C512M&C522M
Availability: InStock

Home > products > Raise Boring Cutter >

5 Rows Of Insert Tooth Hob

Place of Origin:

Hubei , China

Brand Name:

MILALION

Certification:

ISO9001、14001、45001， AP1-7-1

Model Number:

C512M&C522M

Request A Quote

Product Details

Application:

Raise Boring

Materials:

Cemented Carbide

Recommended Cutter Head Rotating Speed:

3~15RPM

Max Line Speed:

90m/min

Payment & Shipping Terms

Price

negotiate

Packaging Details

Plywood box

Payment Terms

T/T

Supply Ability

3000pcs per month

6 Rows Of Insert Tooth Hob

Get Best Price

8 Rows Of Insert Tooth Hob

Get Best Price

5 Rows Of Insert Tooth Hob

Get Best Price

4 Rows Of Insert Tooth Hob

Get Best Price

86- 713- 8341999

info@milaliontools.com

86- 713- 8341768

Contact Now

Product Description

There are three models of this product

No.	型号Model	尺寸 Diameter	A	B	C	Tooth Row	Taper
1	C512M&C522M	12 1/4"	312	217	310	5	20
2	C512M&C522M	12 1/2”	312	217	320	5	20
3	C512M&C522M	141/2"	400	240	360	5	20

Model Description

• C:Construction roller cutter

• 5: 5 steel tooth rows

•12:cutter shape (Low end double row teeth)

•22:cutter shape (High end double row teeth)

•MLL: MLLMILALION

Features

High quality metal sealing .Using high quality tungsten carbide teeth,special bearing structure, so as to achieve the full coverage of crushingCan be Repairable and customized

No.	Used Parameters	12 1/4"	12 1/2"	14 1/2”
1	Suitable Rock Hardness	Platts Hardness ll≤f≤16	Platts Hardness ll≤f≤16	Platts Hardness ll≤f≤16
2	Recommended single cutter drilling pressure	100KN-170KN	100KN-170KN	100KN-200KN
3	Max withstand drilling pressure	198KN	198KN	240KN
4	Recommended cutter head rotating speed	3-15 RPM	3~15 RPM	3-15 RPM
5	Max line velocity	90m/min	90m/min	90m/min

5 Rows Of Insert Tooth Hob 0
